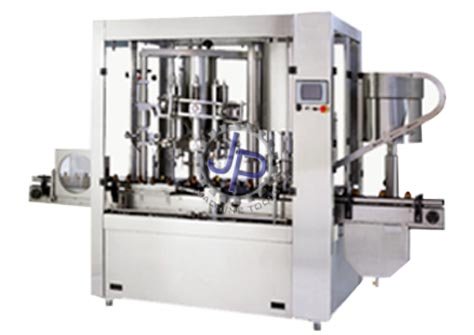

Rotary Liquid filling machine

Model No Model No Production per hour No of Filling heads No of sealing heads
JPRLFS-A-80 JPRLFS-B-80 4800 4 4
JPRLFS-A-120 JPRLFS-B-120 7200 6 6
JPRLFS-A-150 JPRLFS-B-150 9600 8 6
JPRLFS-A-200 12000 10 9
JPRLFS-A-240 14000 12 9
JPRLFS-A-300 18000 16 12

* The output of the machine depends on liquid’s inherent characteristics, ambient atmospheric conditions, fill volume and container geometry.

* Specification subject to change without prior notice.

Application: To fill liquid in Plastic/Glass bottles and simultaneously seal them with Screw/ROPP cap

Inquiry
Machine Detail Accessories & Utillties Optional Features Application

Competencies

  • » Total CGMP model
  • » Frame Made from SS-structure.
  • » Sleek sturdy and compact design
  • » Fully Automatic machine
  • » All controls from panel
  • » Left to right and right to left options available
  • » PLC-HMI touch screen

Features

  • » No bottle no fill arrangement
  • » Very quick changeover of change parts.
  • » Centralized dose adjustment saves time in volume setting
  • » Bottle is centered under the nozzle
  • » Nozzle are penetrated to bottle mouth
  • » Rotary movement of piston and bottle
  • » Liquid is dispensed to bottle from nozzle
  • » Very high dosing accuracy due to piston dosing method
  • » Parts can be easily declamped/clamped for quick cleaning and changeover
  • » Completely fail safe design

Accessories

  • » Cap cleaner
  • » Cap loader
  • » Tank for liquid storage
  • » Pre/post inspection unit
  • » Pre/post check weigher

Utilities

  • » 415V, 3-phase, 50hz electric supply
  • » Electric load:- 5HP
  • » Air:- 2 CFM @ 4 to 6 kg/cm2
  • » Usually used as a combo Machines of filling and sealing, which saves manpower as well as floor space and is more economically    viable.
  • » Ropp capping/ screw capping/ inner plug capping unit can be incorporated as sealing unit.
  • » Individual filling machine also avaiable
  • » Integration with checkweighers, inspection device and rejection device/
  • » Electronic level controller and pneumatic product in feed control
  • » Synchronisation with nitrogen purging.
  • » Servo controlled dose adjustments
  • » To fill liquid in Plastic/Glass bottles and simultaneously seal them with Screw/ROPP cap
  • » Machine series-A suitable to fill 5ml to 250ml
  • » Machine series-B suitable to fill 250ml to 1000ml
  • » Bottle Diameter:- 30mm to 150mm
  • » Bottle height:- 30mm to 150 mm
