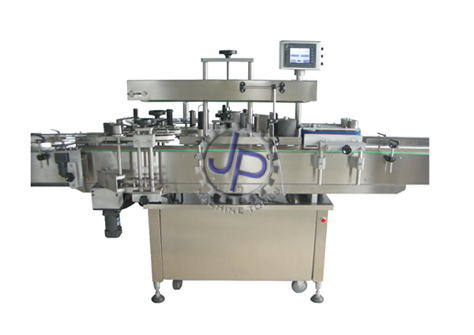

self adhesive sticker labelling machine

Model No Production per hour
JPSL-120 7200
JPSL-240 14400
JPSL-360 21600

* Speed depends on sticker and bottle geometry.

* Specification subject to change without prior notice.

Application:  To apply sticker label on the bottle

Inquiry
Machine Detail Accessories & Utillties Optional Features Application

Competencies

  • » Fully automatic Machine
  • » Total CGMP model
  • » Frame Made from SS-structure.
  • » sleek sturdy and compact design
  • » All controls from panel
  • » Left to right and right to left options available
  • » PLC HMI-Touch screen

Features

  • » Very quick changeover of the changeparts.
  • » Very high accuracy for label placement
  • » Stepper motor/servo motor for label applicator
  • » No need of changeparts for different sizes of containers/labels
  • » Completely Fail safe design

Accessories

  • » Printer
  • » Bar code reader/Pharma code
  • » Camera Inspection
  • » Pre/post inspection unit
  • » Auto rejection

Utilities

  • » 415V, 3-phase, 50hz electric supply
  • » Electric load:- 2HP
  • » Integration with inspection, rejection device and vision systems
  • » Industrial PC to display/inspection of barcode
  • » Different kind of printers can be integrated.
  • » To apply sticker label on the bottle
  • » Sticker length:-30 mm to 300 mm
  • » Bottle diameter:- 30mm to 100 mm
  • » Bottle height:- 50 mm to 150 mm
